Description

Technical Specification

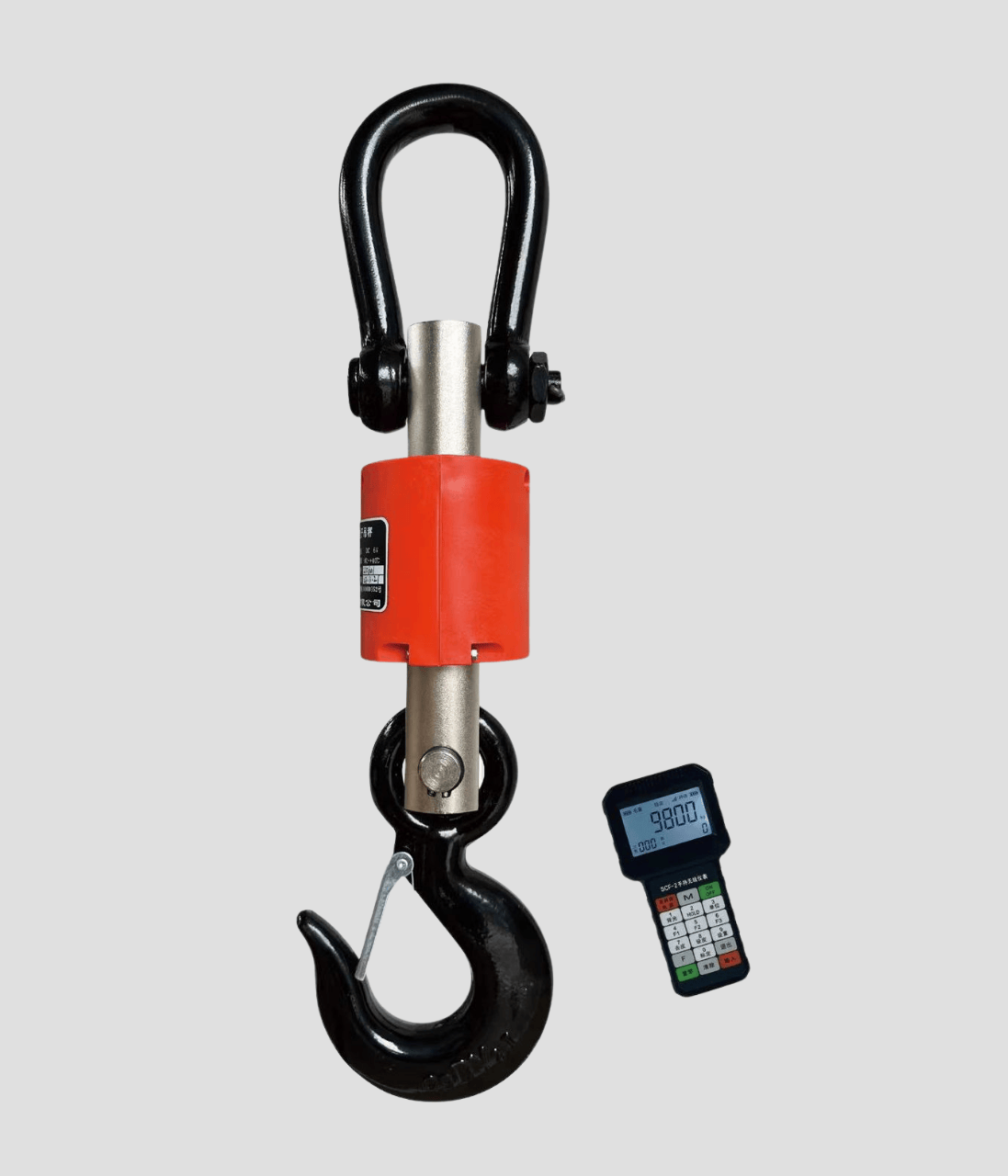

• Direct or wireless electronic crane scale weighing module
• Input signal: -20 ~ +20mV
• A/D conversion: 24-bit Sigma–Delta A/D convert
• Non-linearity: ≤0.0015% F.S.
• Minimum resolution: 0.5uV/d
• Loadcell excitation: 5V / 100mA
• Working temperature: -40°C ~ +85°C
• Humidity: ≤90% R.H
• Power: DC 6V

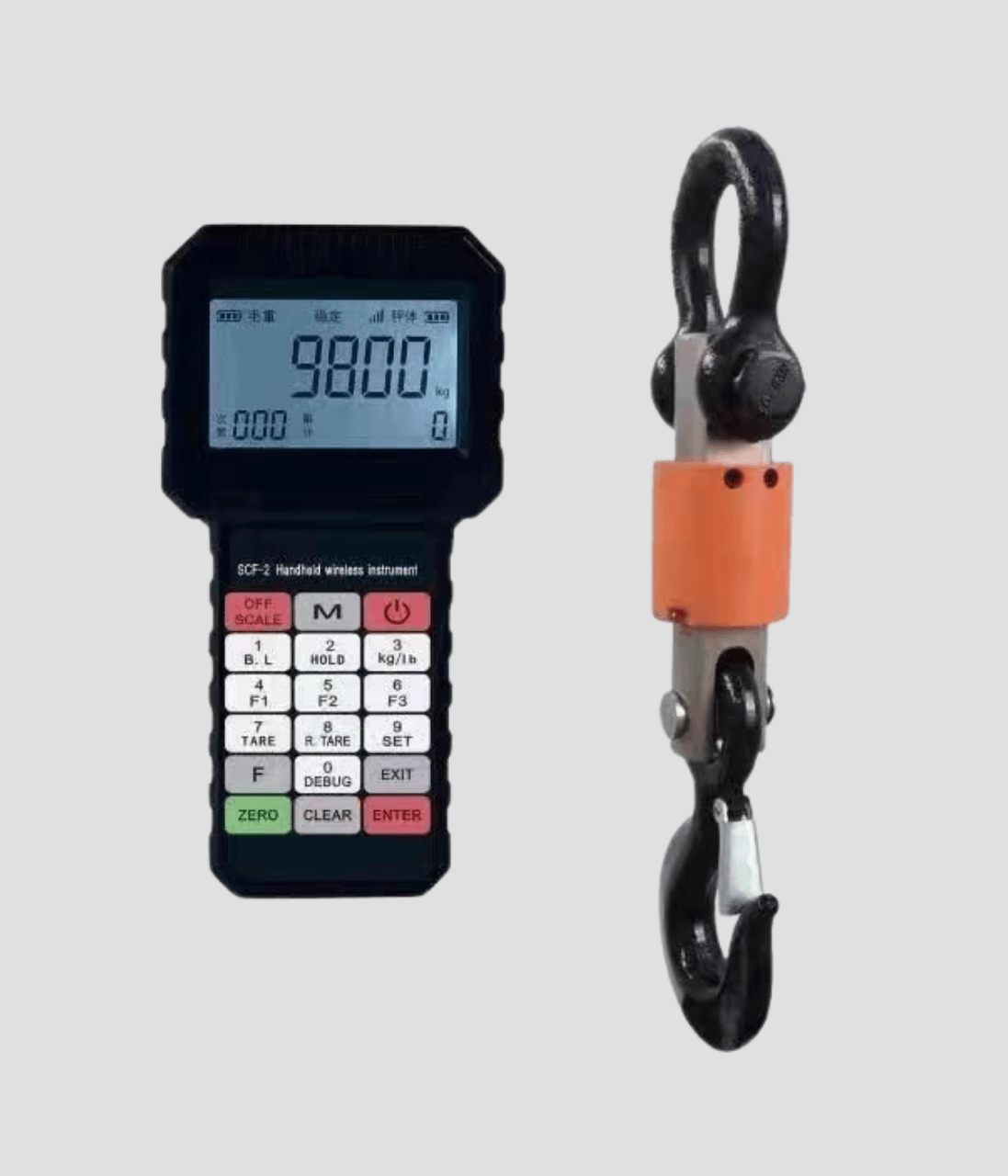

Wireless Handheld Indicator

• Display: 5-bit 0.5 inch LCD display
• Frequency: 433MHz (32 channels)
• Distance: Not less than 350m if no obstacle (customised)
• Working temperature: -10°C ~ +45°C
• Humidity: ≤90% R.H
• Power: Built-in 3.6V battery, adaptor 4.2V
