GJ642 Loadcell

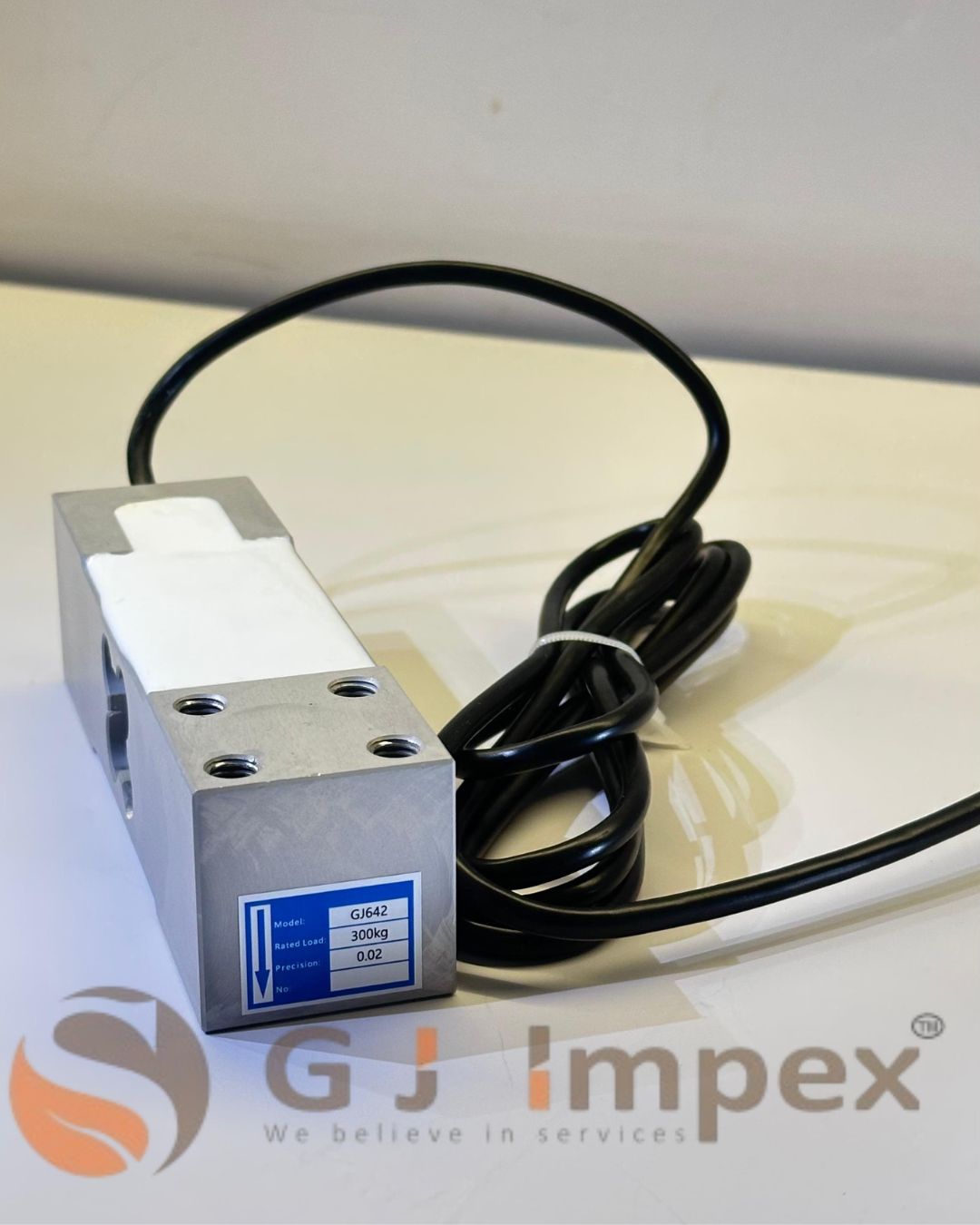

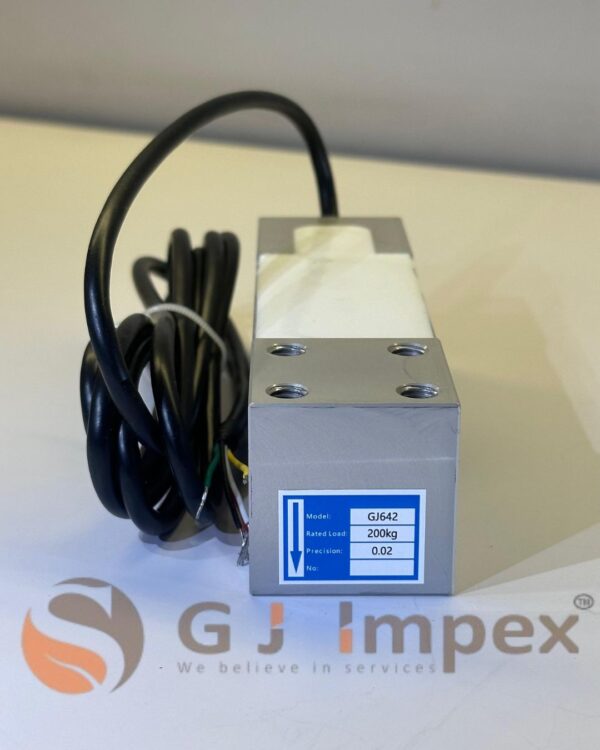

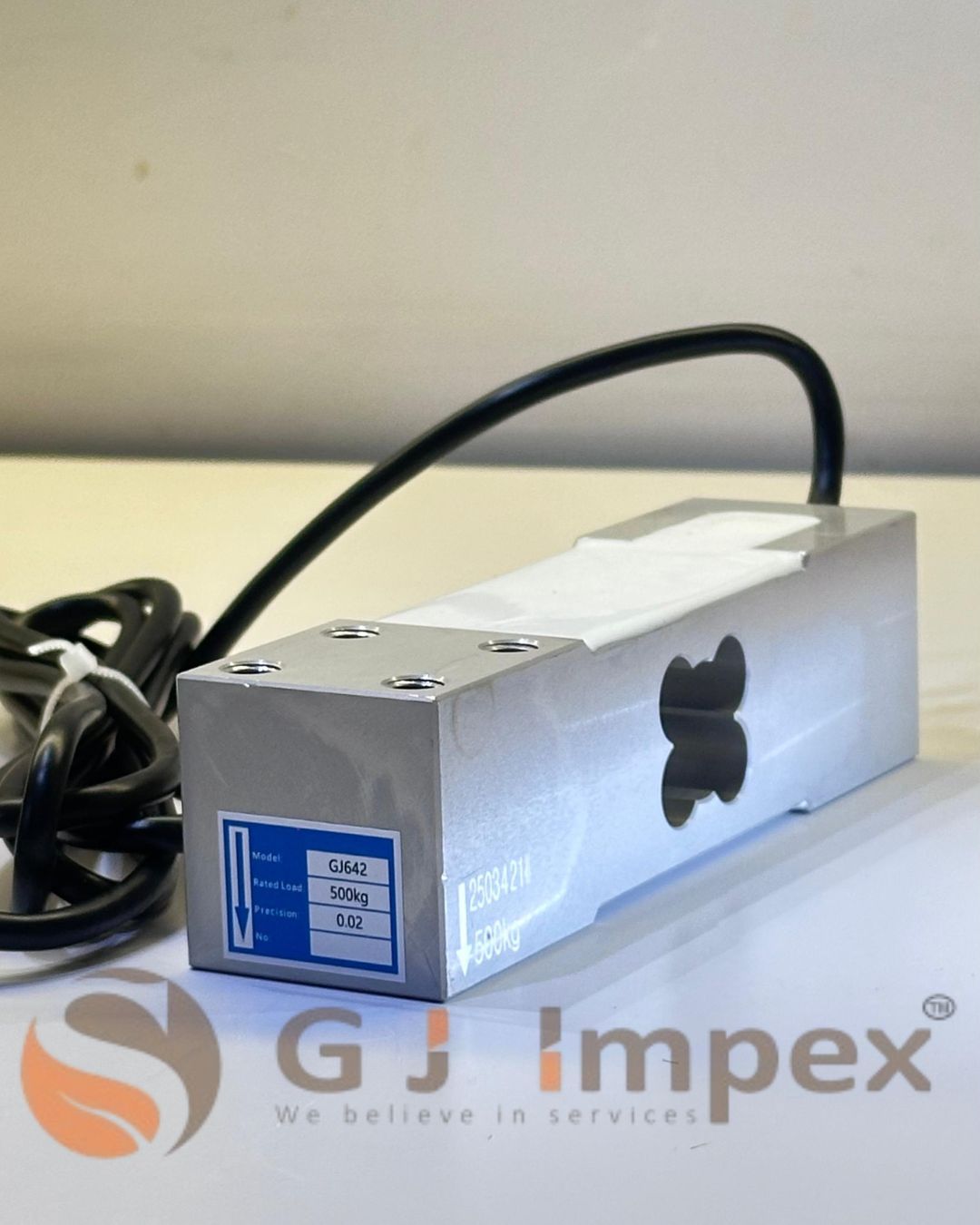

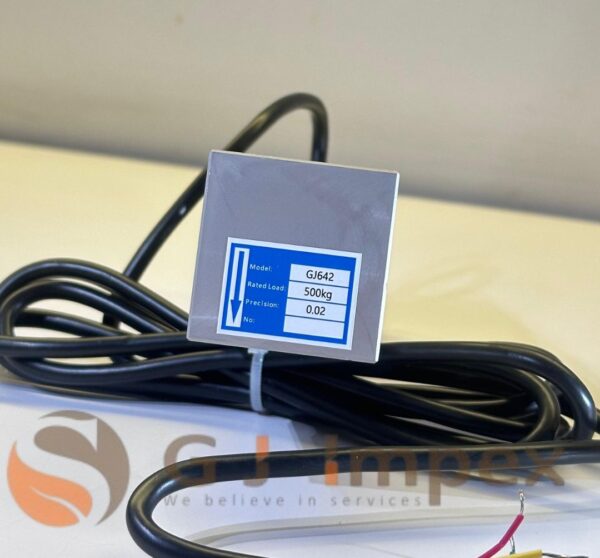

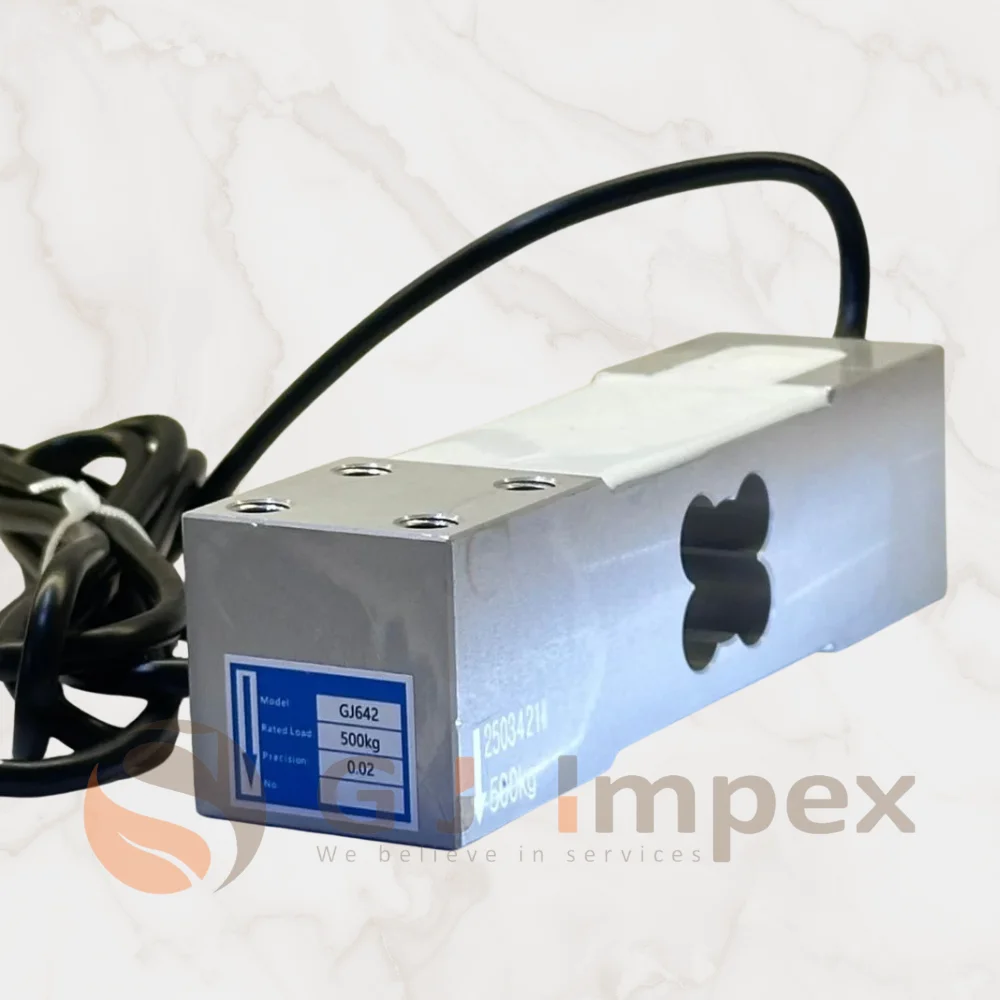

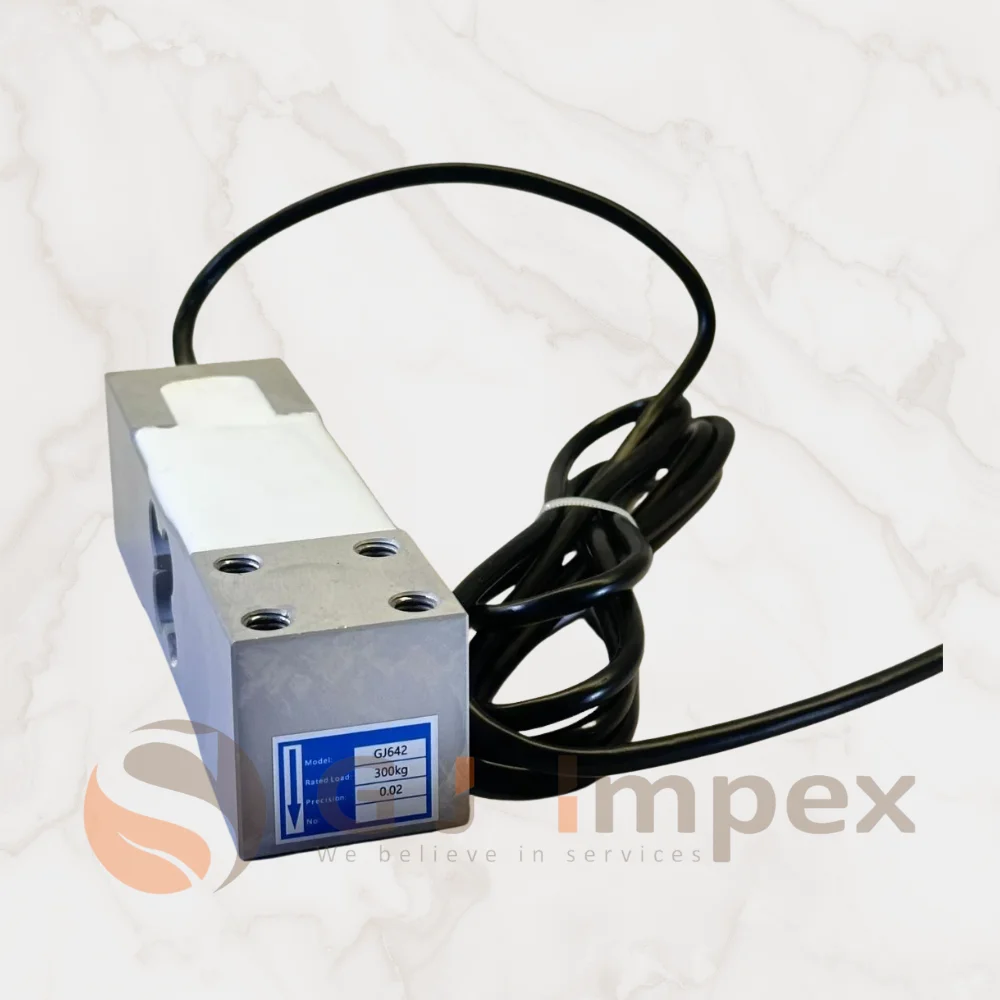

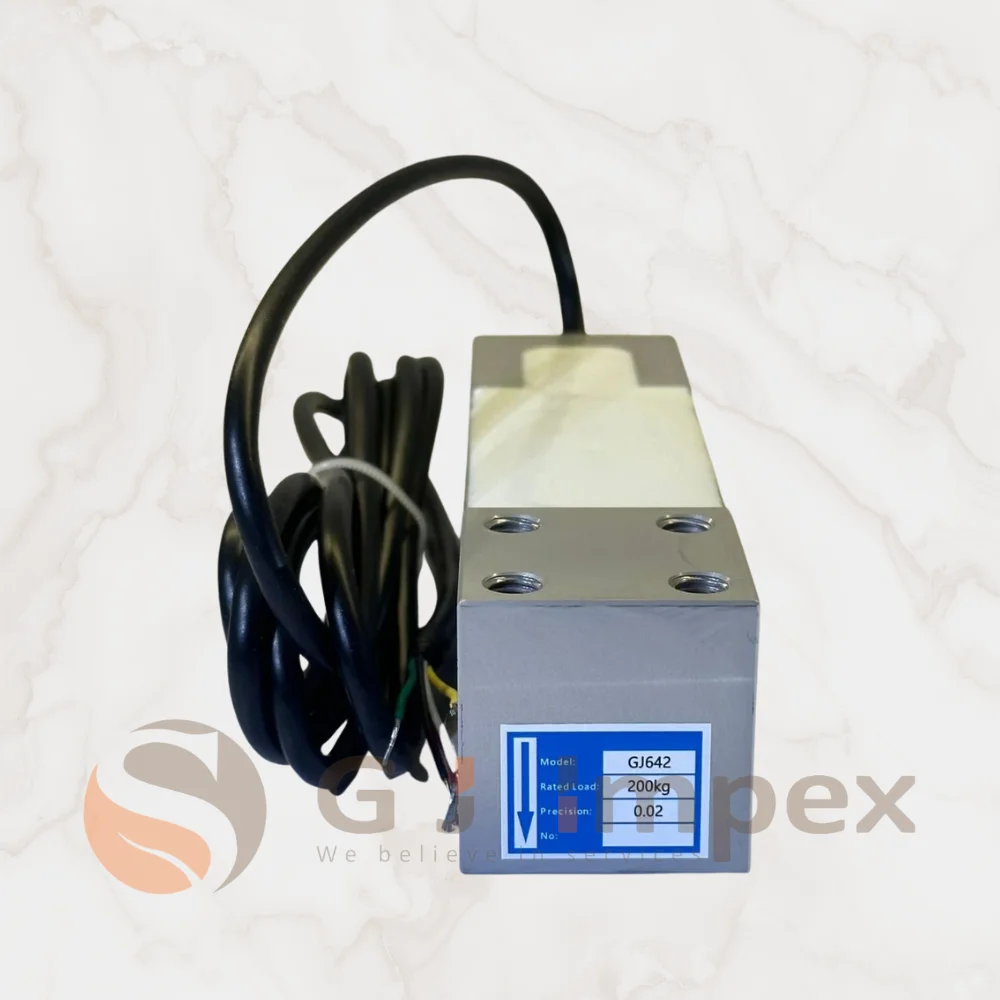

The GJ642 load cell is built for industrial-grade accuracy and reliability, supporting medium to heavy load applications. Designed with a robust anodized aluminium body and precision C3 class output, it’s ideal for platform scales, conveyor weighing systems, and automation equipment.

Rated load (kg): 100, 200 ,300 ,500
Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Wiring schematic diagram:

Red: Input ( ＋ ) White: Output ( － )
Black: Input ( － ) Green: Output ( ＋ )

Notes：It used 4-core shielded cable(φ5×3000mm)

Categories All, LOADCELL

Description

Parameter	Specification
Precision	C2
Comprehensive Error (%F.S)	±0.02
Rated Output (mV/V)	2.0 ± 0.1
Creep (%F.S / 30 min)	±0.02
Zero Balance (%F.S)	±1.0
Input Resistance (Ω)	405 ± 10
Output Resistance (Ω)	350 ± 3
Insulation Resistance (MΩ)	≥ 5000 (100 VDC)
Temp. Effect on Span (%F.S / 10°C)	±0.02
Temp. Effect on Zero (%F.S / 10°C)	±0.03
Compensated Temperature Range (°C)	-10 to +40
Operating Temperature Range (°C)	-20 to +60
Excitation Voltage (VDC)	9 – 12
Safe Overload (%F.S)	120%
Ultimate Overload (%F.S)	150%
Protection Class	IP65
