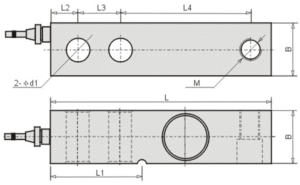

CZL803M (Shear Beam) Loadcell

The CZL803-M is a heavy-duty shear beam load cell designed for high-capacity industrial weighing. With rugged construction and precision C2-class accuracy, it offers reliable performance in floor scales, tank weighing systems, and automated loading platforms. Available in multiple capacities up to 10 tons.

Rated load(KG): 100kg, 200kg, 300kg, 500kg, 750kg, 1000kg, 2000kg

Main features: Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion ,suitable for multiform environments ;suitable for electronic platform scales, hopper scales, and other electronic weighing devise.

Wiring schematic diagram:

Red: Input( ＋ ) White: Output ( － )

Black: Input ( － ) Green: Output(＋ )

Notes：Itused4-coreshieldedcable(φ5×3000mm)

Categories All, LOADCELL

Description

Parameter	Specification
Precision	C2
Comprehensive Error (%F.S)	±0.02
Rated Output (mV/V)	3.0 ± 0.003
Creep (%F.S / 30 min)	±0.02
Zero Balance (%F.S)	±1.0
Input Resistance (Ω)	350 ± 5
Output Resistance (Ω)	350 ± 5
Insulation Resistance (MΩ)	≥ 5000 (100 VDC)
Temp. Effect on Span (%F.S / 10°C)	±0.03
Temp. Effect on Zero (%F.S / 10°C)	±0.02
Compensated Temp. Range (°C)	-10 to +40
Operating Temp. Range (°C)	-20 to +55
Excitation Voltage (VDC)	9 – 12
Safe Overload (%F.S)	150%
Ultimate Overload (%F.S)	200%
Protection Class	IP65
