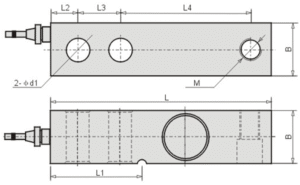

CZL803KA3 (Shear Beam) Loadcell

The CZL803-KA3 is a compact single-point load cell designed for precision in small platform scales and retail weighing systems. Made from high-strength aluminium alloy and offering stable output with minimal error, it’s ideal for applications requiring accuracy, reliability, and fast response time.

Rated load: 3000kg～10000kg

Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Wiring schematic diagram:

Red: Input ( ＋ ) White: Output ( － )
Black: Input ( － ) Green: Output ( ＋ )

Notes：It used 4-core shielded cable(φ5×3000mm)

Categories All, LOADCELL

Description

Parameter	Specification
Precision	C2
Comprehensive Error (%F.S)	±0.03
Rated Output (mV/V)	2.0 ± 0.003
Creep (%F.S / 30 min)	±0.024
Zero Balance (%F.S)	±1.0
Input Resistance (Ω)	350 ± 5
Output Resistance (Ω)	350 ± 3
Insulation Resistance (MΩ)	≥ 5000 (100 VDC)
Temp. Effect on Span (%F.S / 10°C)	±0.017
Temp. Effect on Zero (%F.S / 10°C)	±0.023
Compensated Temp. Range (°C)	-10 to +40
Operating Temp. Range (°C)	-20 to +55
Excitation Voltage (VDC)	9 – 12
Safe Overload (%F.S)	150%
Ultimate Overload (%F.S)	200%
Protection Class	IP66
