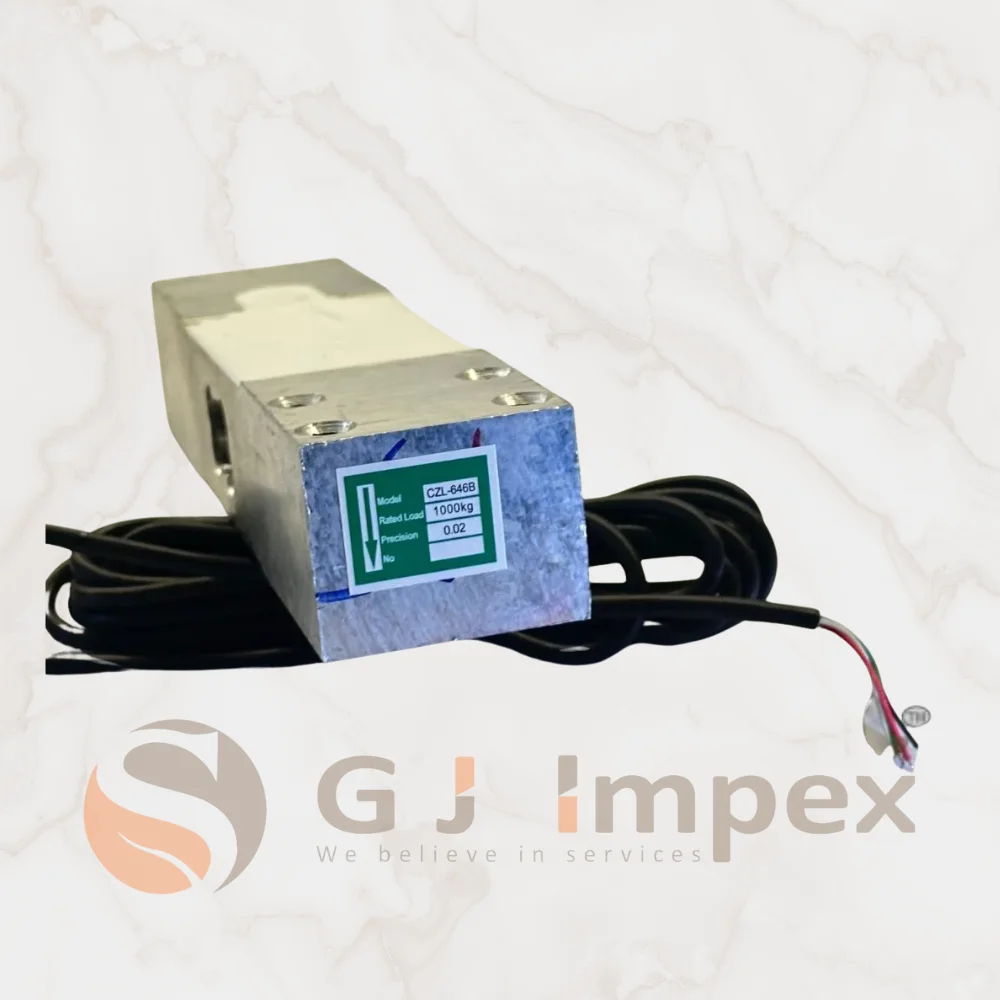

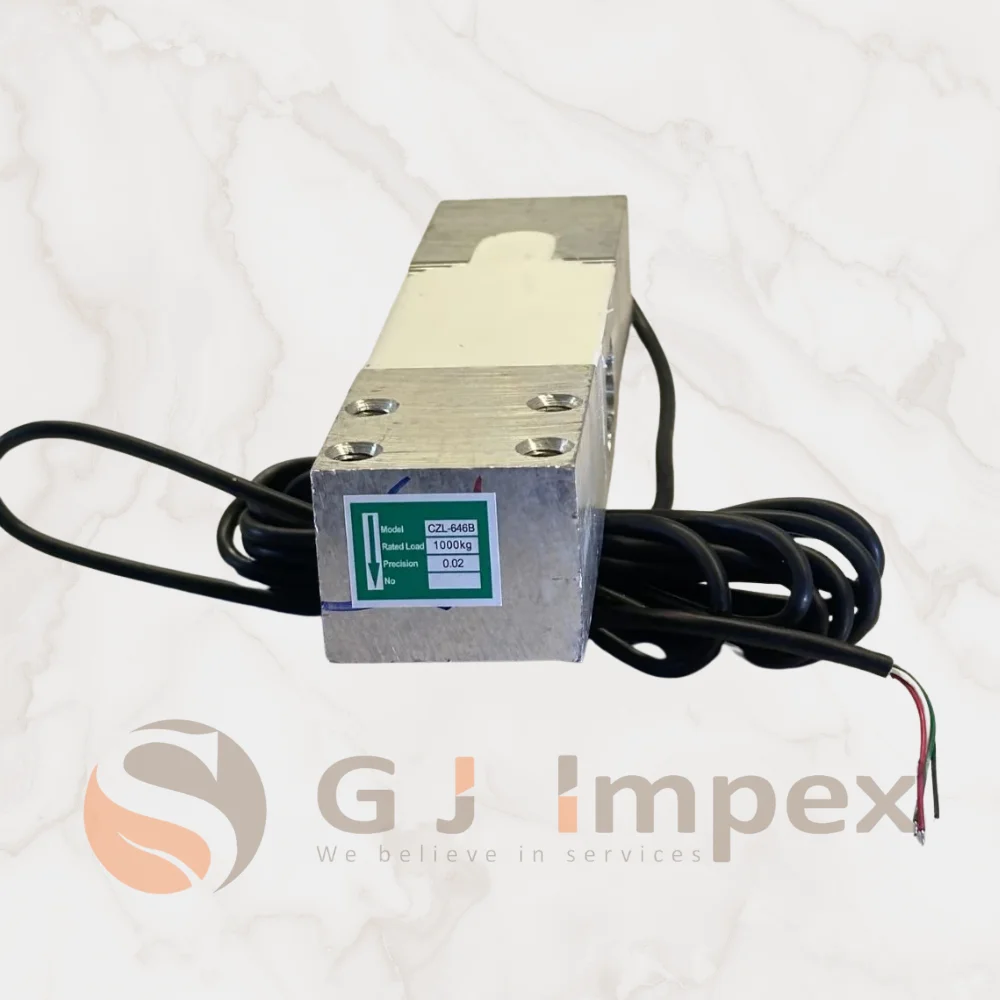

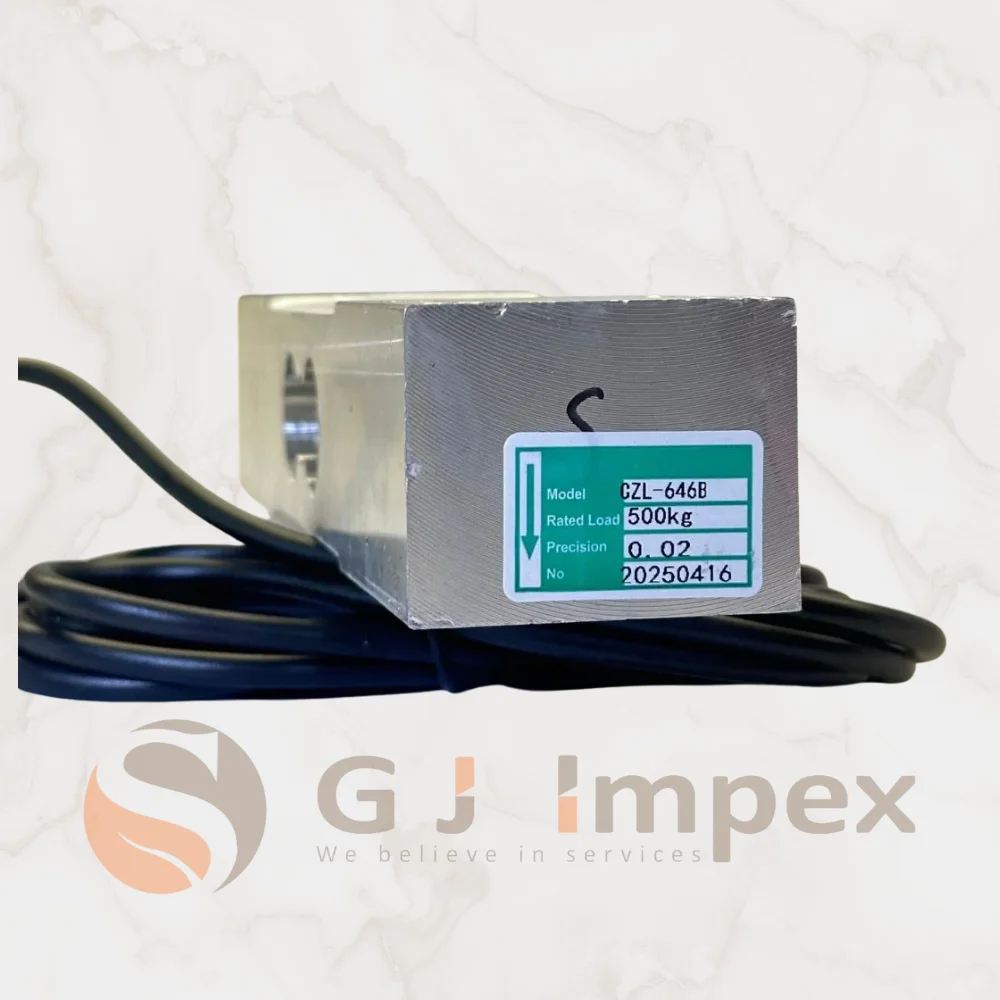

CZL646B Loadcell

CZL646B Loadcell is a high-precision, aluminum alloy single-point load cell designed for bench scales, platform scales, and other low-capacity weighing systems. With excellent linearity, temperature stability, and IP65 protection, it ensures reliable and accurate performance across diverse industrial environments. Ideal for compact weighing applications up to 500 kg.

rated load (kg ) – 500 , 750 ,1000
Wiring schematic diagram:

Red: Input ( ＋ ) White: Output ( － )
Black: Input ( － ) Green: Output ( ＋ )

Notes：It used 4-core shielded cable(φ5×1500mm)

Categories All, LOADCELL

Description

Parameter	Specification
Precision	C2
Comprehensive Error (%F.S)	±0.02
Rated Output (mV/V)	2.0 ±0.1
Creep (%F.S/30min)	±0.02
Zero Balance (%F.S)	±1.0
Input Resistance (Ω)	405 ±10
Output Resistance (Ω)	350 ±3
Insulation Resistance (MΩ)	≥5000 (100VDC)
Temp. Effect on Span (%F.S/10℃)	±0.02
Temp. Effect on Zero (%F.S/10℃)	±0.03
Compensated Temp. Range (℃)	-10 ～ +40
Use Temp. Range (℃)	-20 ～ +60
Excitation Voltage (V)	9 ～ 12 (DC)
Safe Overload (%F.S)	120
Ultimate Overload (%F.S)	150
Defend Grade	IP65
