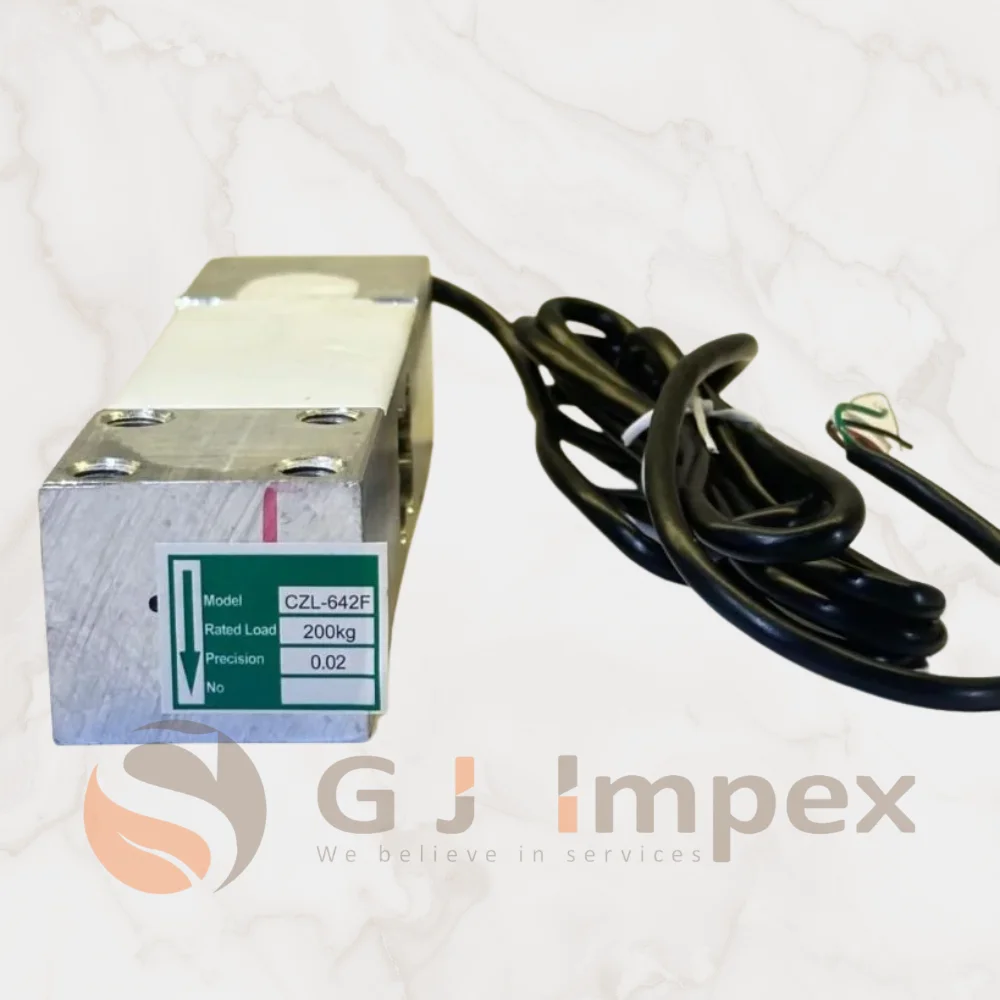

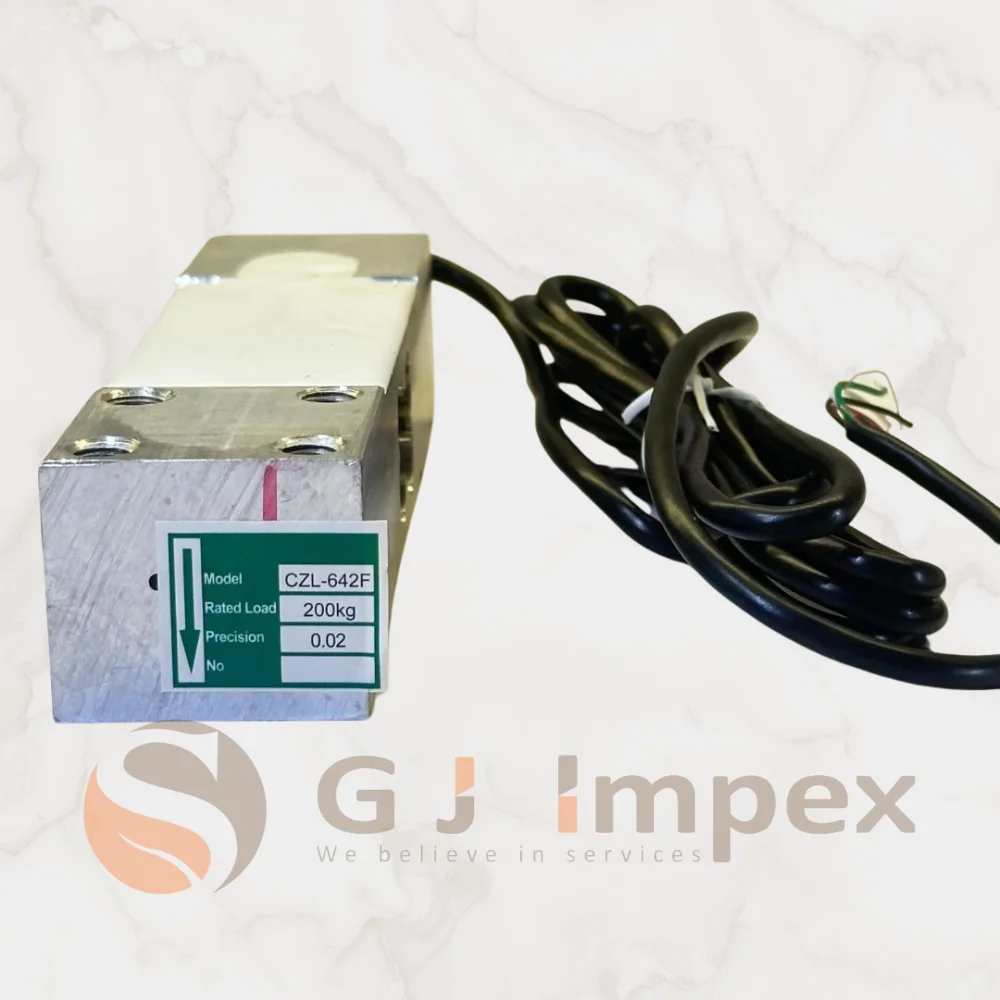

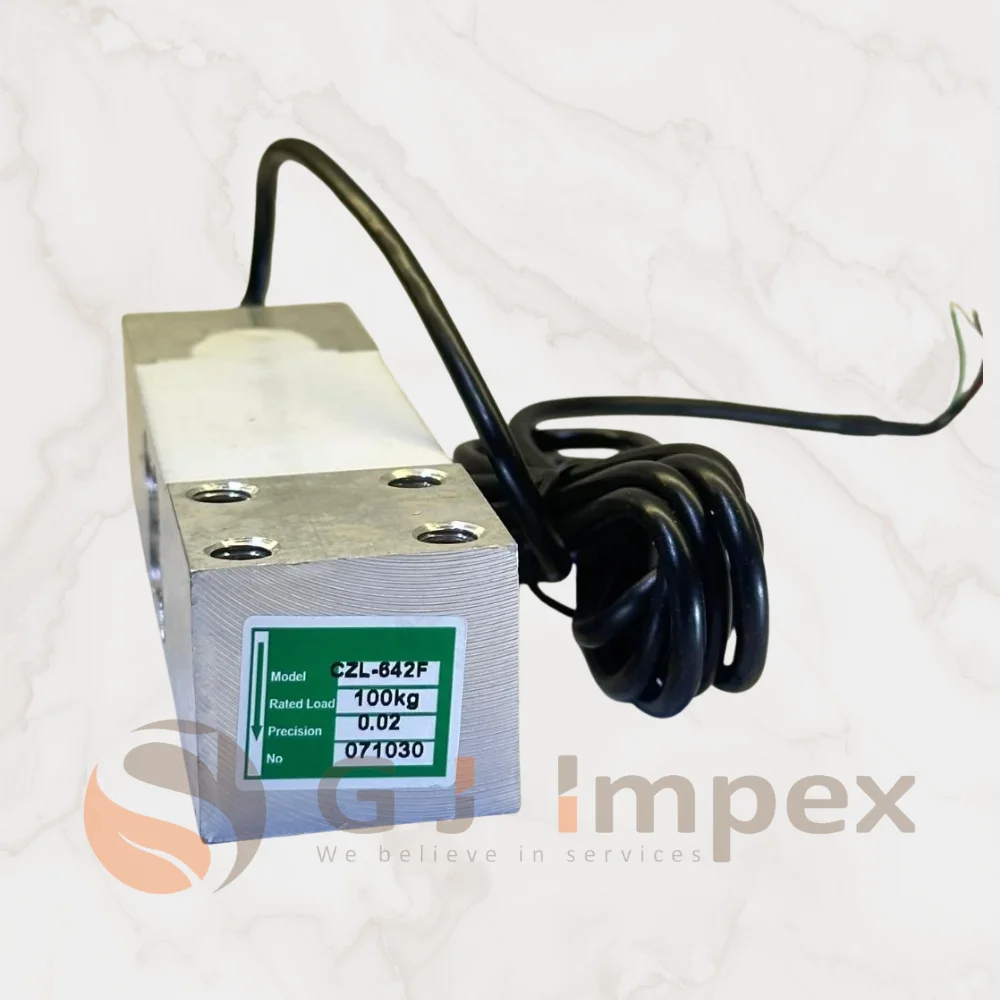

CZL642F Loadcell

The CZL642F load cell is designed for heavy-duty industrial applications requiring high accuracy and durability. With a robust aluminium alloy body and precision C3 output, it delivers reliable performance in platform scales, hopper systems, and automation setups. Built to withstand demanding environments with excellent overload tolerance.

rated load (Kg) – 200 , 300 , 500

Type: single point load cell
Material: aluminum alloy
Surface: anodized treatment
Protection: IP65
Suggested Platform Size: 600 ×600 mm
Application: retail, bench and counting scales

Wiring schematic diagram:

Red: Input ( ＋ ) White: Output ( － )
Black: Input ( － ) Green: Output ( ＋ )

Categories All, LOADCELL

Description

Parameter	Specification
Rated Load	100–500 Kg
Rated Output	2.0 mV/V ±5%
Zero Balance	±1% F.S
Input Resistance	400 ±10 Ω
Output Resistance	350 ±3 Ω
Excitation Voltage	9–12 VDC
Nonlinearity	0.02% F.S
Hysteresis	0.02% F.S
Repeatability	0.02% F.S
Creep (30min)	0.02% F.S
Operating Temperature	-20℃ to +65℃
Temperature Effect on Zero	0.03% F.S/10℃
Temperature Effect on Span	0.02% F.S/10℃
Insulation Resistance	5000 MΩ (50VDC)
Safe Overload	150% F.S
Ultimate Overload	200% F.S
Cable	3m (Ф3mm 4-wire shielding cable)
