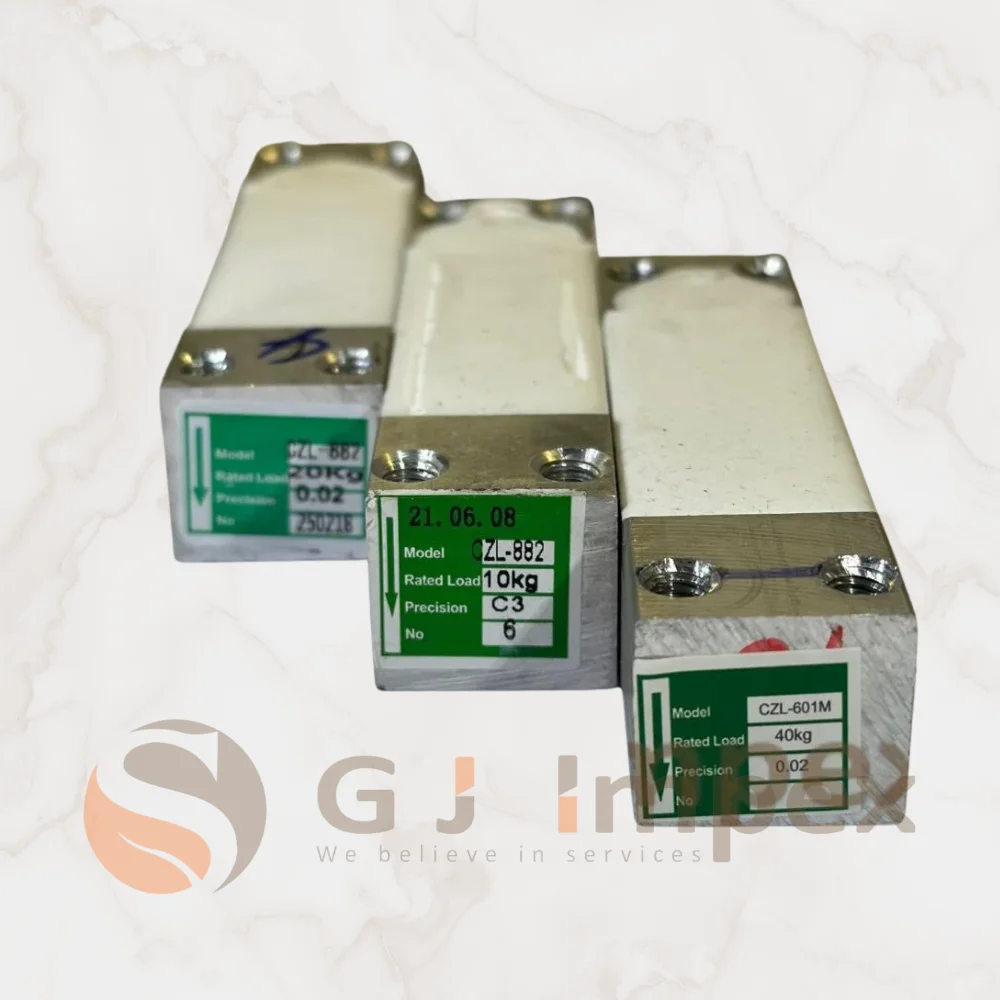

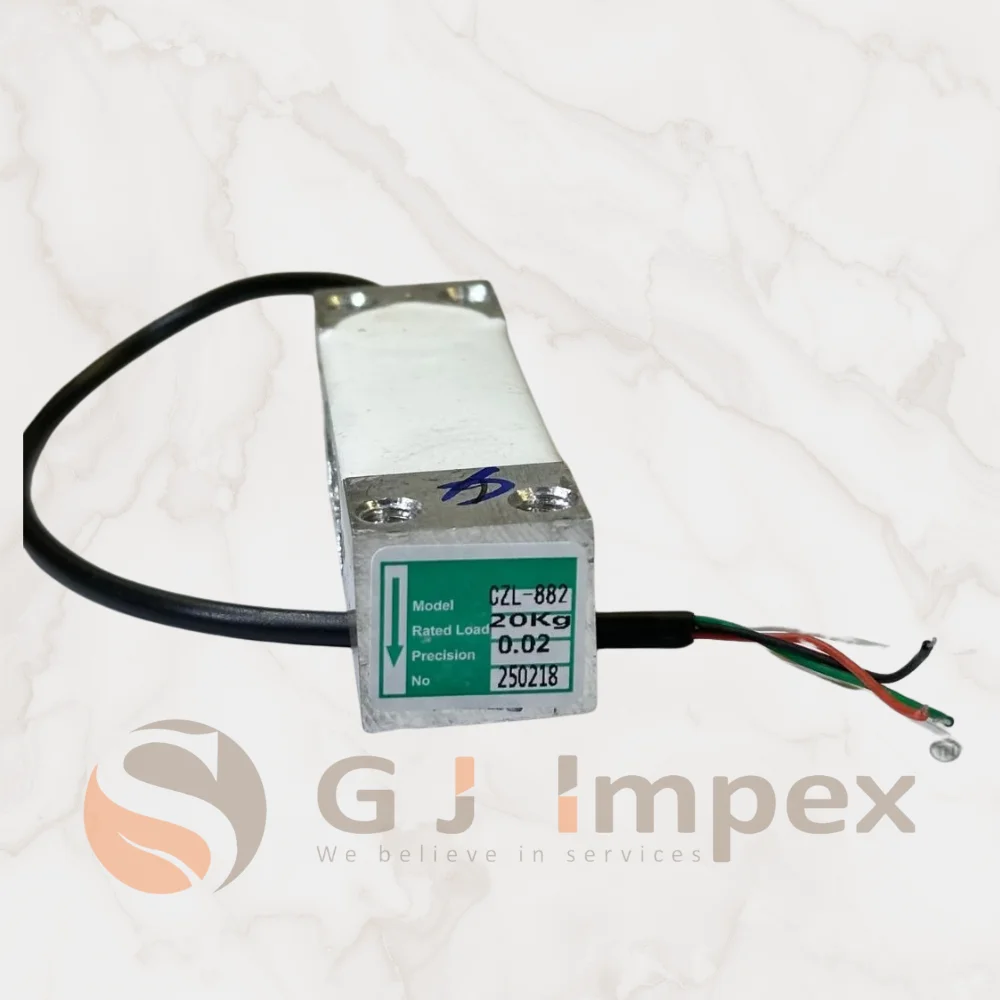

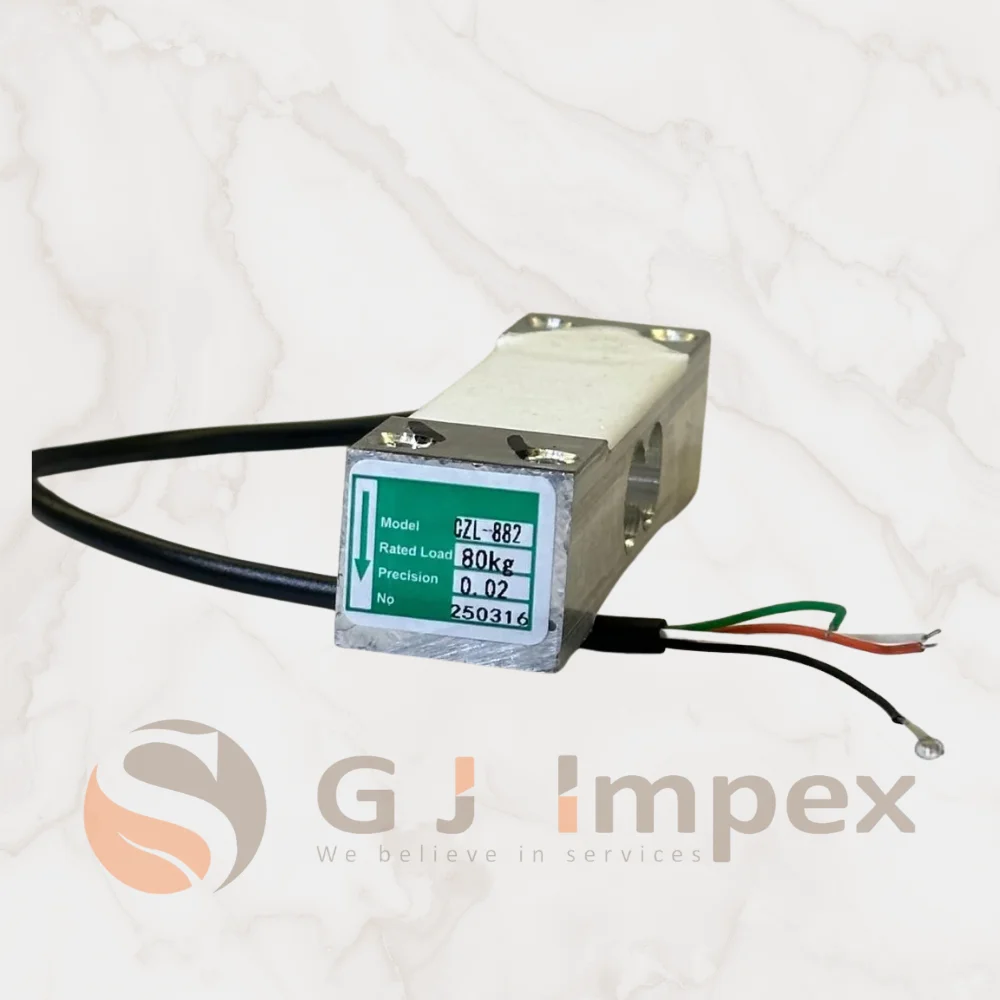

CZL601M (88mm) Loadcell is a compact single-point load cell built for precision in small-scale weighing systems. Made from high-quality aluminum alloy, it offers stable output, fast response, and reliable performance in applications like tabletop scales, price computing machines, and retail weighing. Designed for 88mm platform sizes with IP65 protection.
rated load (kg)- 10,20,40,80
Type: single point load cell
Material: aluminum alloy
Surface: anodized treatment
Protection: IP65
Maximum Platform Size: 350 ×350 mm
Application: retail, bench and counting scales
Wiring schematic diagram:
Red: Input ( ＋ ) White: Output ( － )
Black: Input ( － ) Green: Output ( ＋ )
| Parameter | Specification |
|---|---|
| Rated Load | 40 Kg |
| Rated Output | 2.0 ±0.2 mV/V |
| Zero Balance | ±1.5% F.S |
| Input Resistance | 400 ±15 Ω |
| Output Resistance | 350 ±3 Ω |
| Excitation Voltage | 9–12 VDC |
| Nonlinearity | 0.02% F.S |
| Hysteresis | 0.02% F.S |
| Repeatability | 0.02% F.S |
| Creep (30 min) | 0.02% F.S |
| Operating Temperature | -20℃ to +65℃ |
| Temperature Effect on Zero | 0.15% F.S/10℃ |
| Temperature Effect on Span | 0.05% F.S/10℃ |
| Insulation Resistance | 3000 MΩ (50VDC) |
| Safe Overload | 150% F.S |
| Ultimate Overload | 200% F.S |
| Cable | 240 mm |
