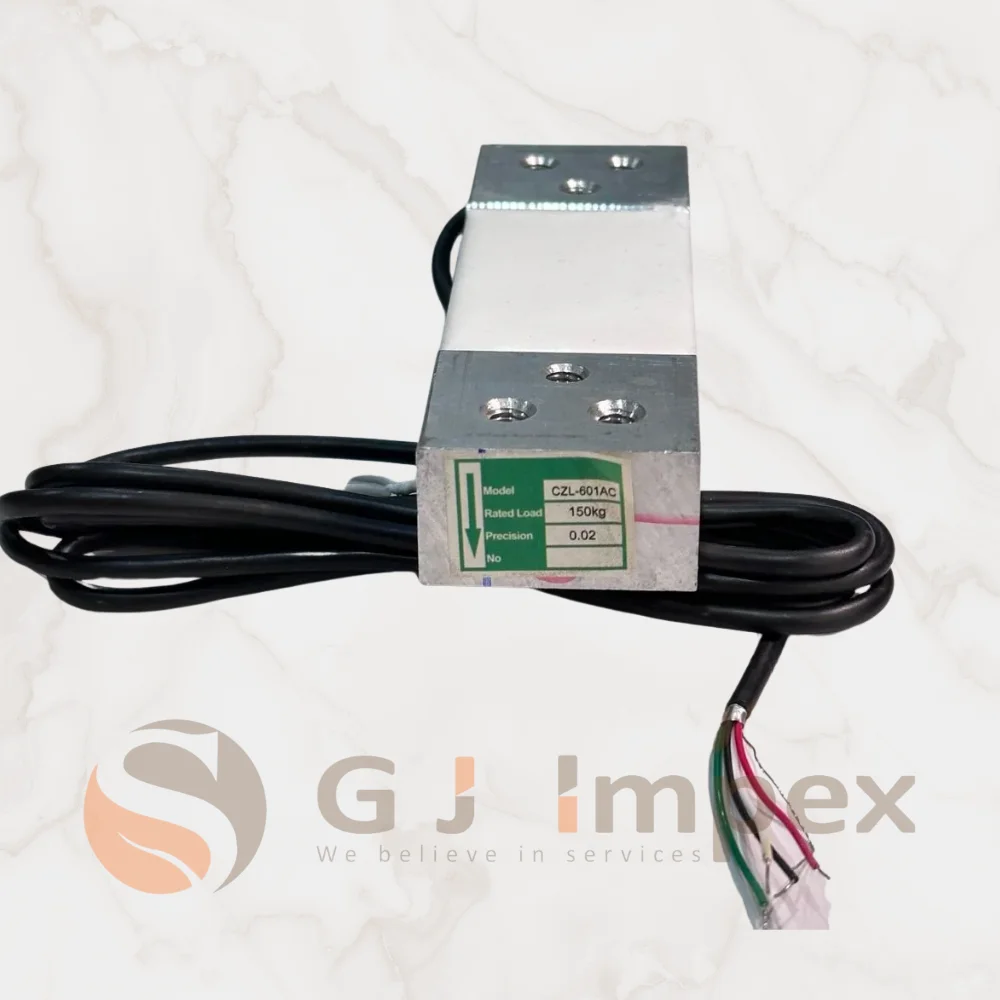

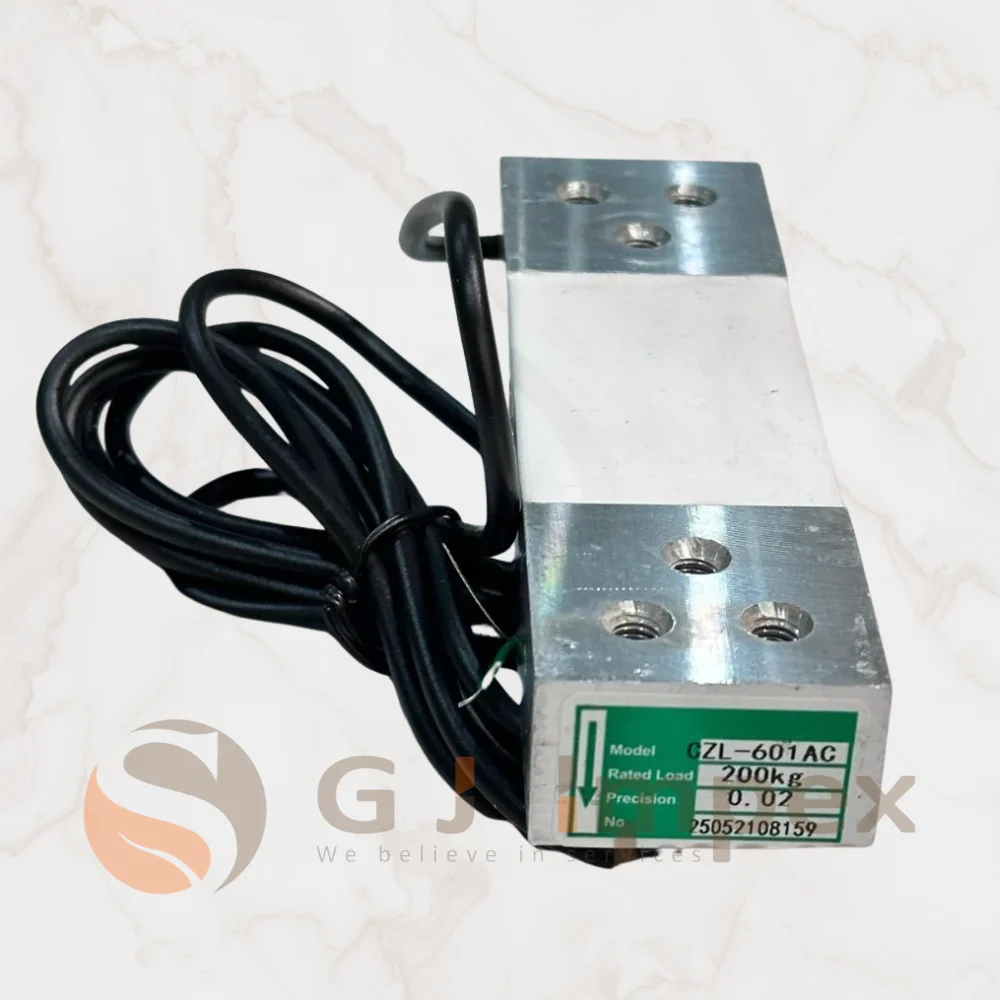

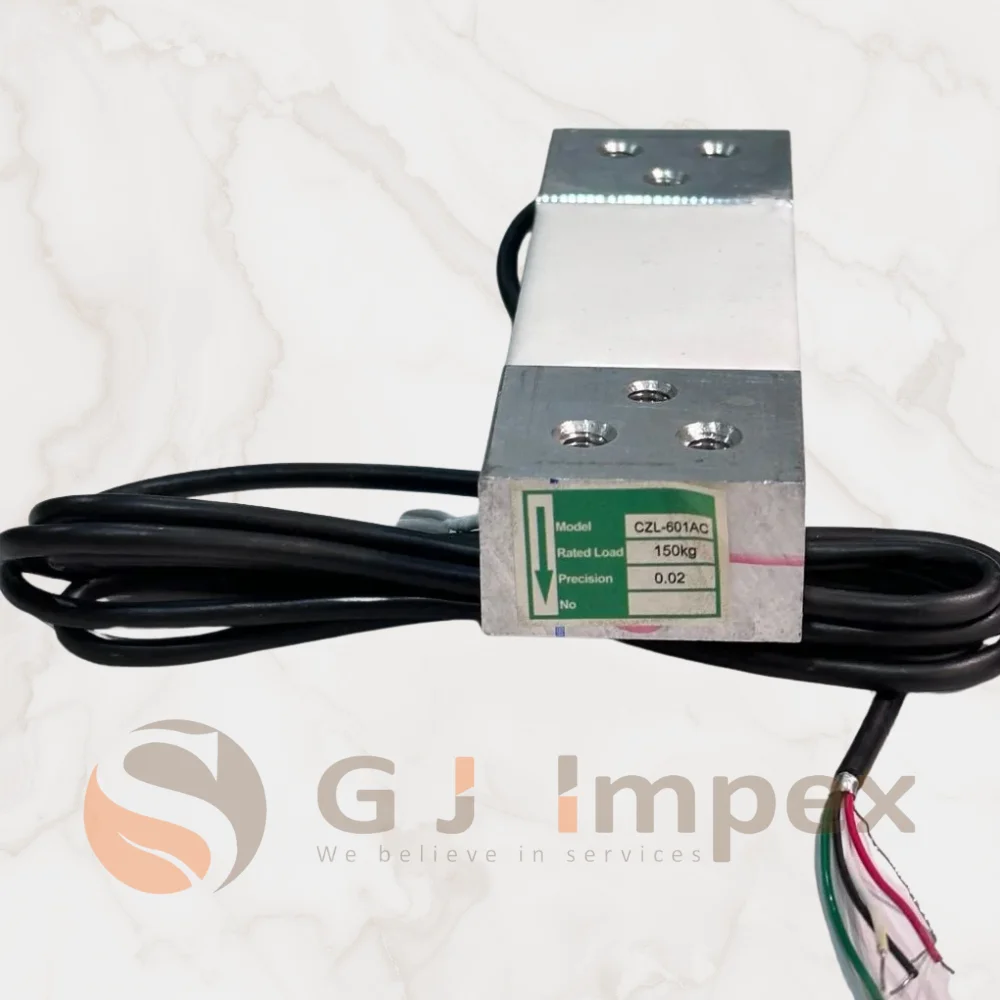

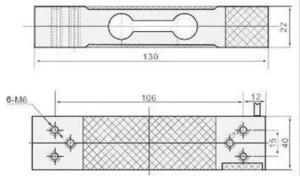

CZL601AC Loadcell

The CZL601AC load cell is a high-precision, aluminium-alloy sensor designed for industrial-scale applications. With stable output, C2/C3 accuracy class, and a compact 400mm x 400mm platter size, it’s ideal for automated weighing systems requiring reliability, durability, and long-term performance.

rated load (Kg) – 120 , 150 , 200

Wiring Schematic Diagram

Red: Input (+)
White: Output (-)
Black: Input (-)
Green: Output (+)

Notes

It used 4-core shielded cable(φ5×3000mm)

Categories All, LOADCELL

Description

Specification	Details
Rated Load	45-50°C
Brand Name	CZL601AC
Nominal Output	2.0 ± 0.1 mV/V (millivolt per volt)
Precision	C2 / C3 (0.017% & 0.02% FSO Comprehensive Error)
Excitation Voltage	9 VDC – Maximum 12 VDC
Platter Size	400mm x 400mm
Safe Load	120% of Rated Capacity
Ultimate Load	150% of Rated Capacity
Non Linearity	< ±0.03% of FSO (Full Scale Output)
Creep (30 minutes)	< ±0.025% of FSO
Zero Balance	< ±1% of FSO
Input Resistance	400 ± 10 Ω
Output Resistance	350 ± 5 Ω
Insulation Resistance	> 5000 MΩ
Temperature Compensation	-10°C to +40°C
Temperature Effect on Zero & Span	< 0.03% FSO / 10°C
Material	Aluminium alloy, colourless anodized
Cable	4mm, 2 meters
