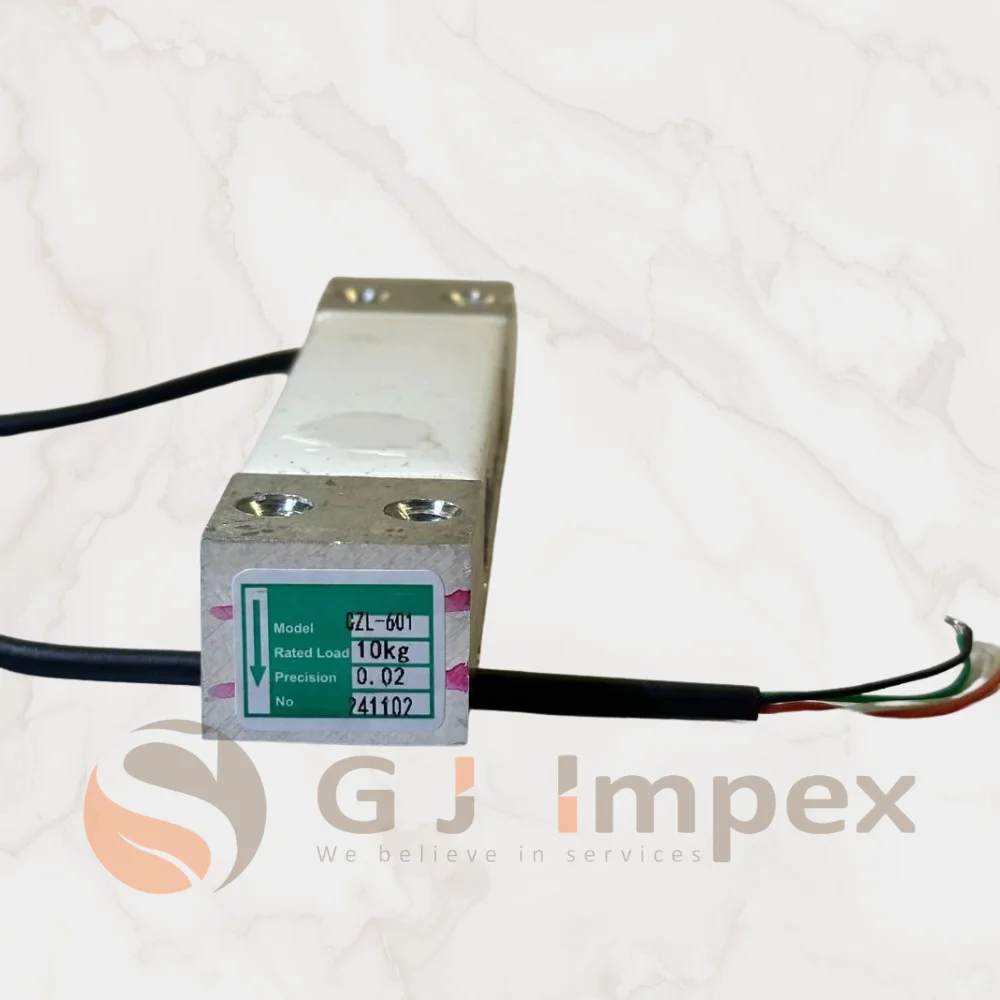

CZL601 Loadcell

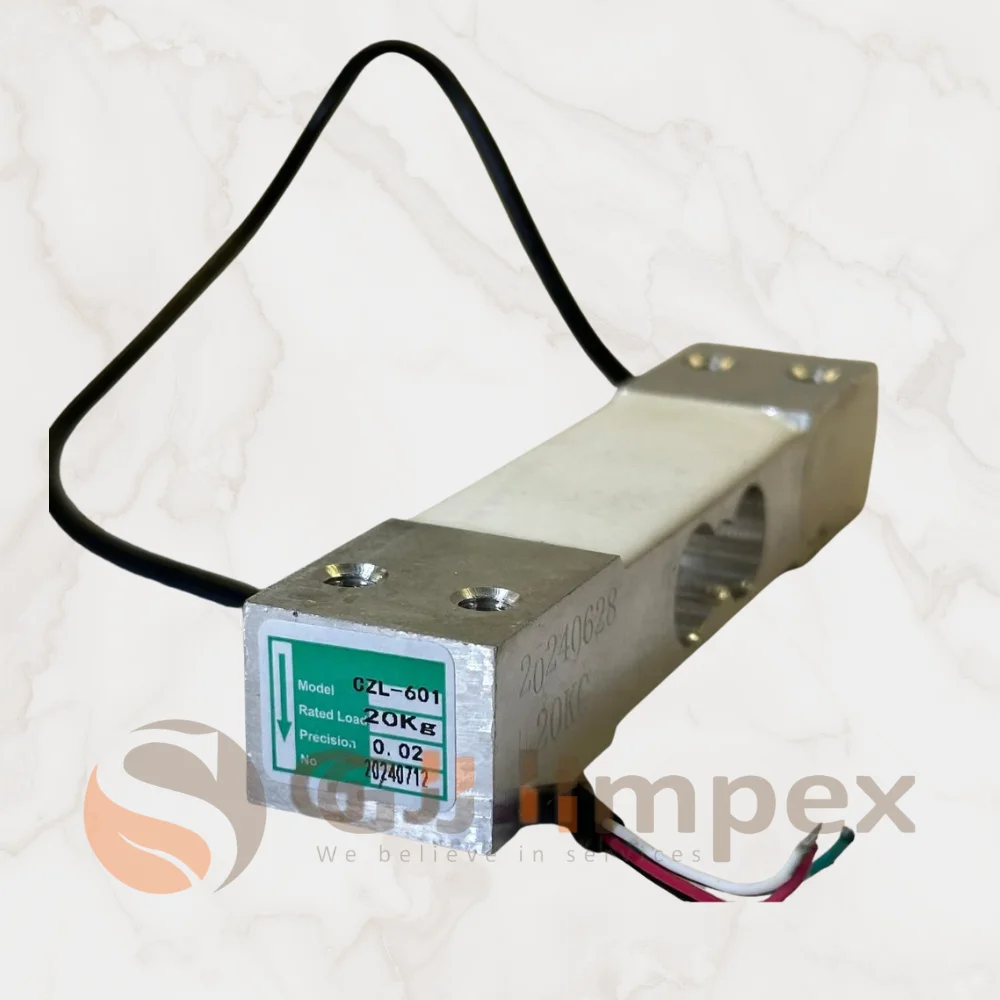

The CZL601 load cell is a compact and reliable sensor designed for precise weight measurement in tabletop and industrial scales. With a 40kg capacity, anodized aluminium body, and high-accuracy C2/C3 class output, it ensures stable performance, long-term durability, and easy integration into custom weighing systems.

rated load (kg) – 3 , 6 , 10 , 20 , 40 , 80

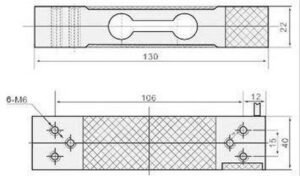

Wiring Schematic Diagram

Red: Input (+)
White: Output (-)
Black: Input (-)
Green: Output (+)

Notes

It used 4-core shielded cable(φ5×3000mm)

Categories All, LOADCELL

Description

Parameter	Specification
Output	Electric
Rated Load	45–50°C
Nominal Output	2.0 ± 0.1 mV/V
Precision	C2 / C3 (0.017% & 0.02% FSO)
Excitation Voltage	9 VDC – Max 12 VDC
Platter Size	400mm x 400mm
Safe Load	120% of Rated Capacity
Ultimate Load	150% of Rated Capacity
Non-Linearity	< ±0.03% of FSO
Creep (30 minutes)	< ±0.025% of FSO
Zero Balance	< ±1% of FSO
Input Resistance	400 ± 10 Ω
Output Resistance	350 ± 5 Ω
Insulation Resistance	> 5000 MΩ
Temperature Compensation	-10°C to +40°C
Temp. Effect on Zero & Span	< 0.03% FSO / 10°C
Cable	4mm, 2 meters
